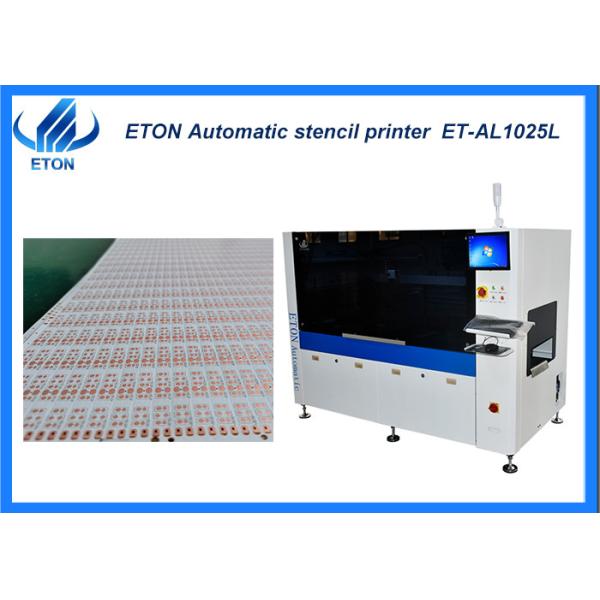

SMT 100m LED strip light stencil solder paste printing machine
Machine configuration
● Programmable suspension printing head;
● Two sets of stepping motor drive, the pressure of front and rear scraper can be adjusted separately to ensure the inconsistency of front and rear printing caused by fatigue deformation of scraper material;
● Effectively control the stroke, improve the printing efficiency, and prevent the leakage of solder paste;
● Standard stainless steel scraper, unique design, improve the service life of the blade;
● Downward vision alignment system;
● CNC guide rail adjustment;
● Industrial controlled computer,Windows XP interface operating system;
● Built-in software diagnostic system;
● SMEMA interface.
Technical parameter
| Screen Frames | Min Size | 850mm |
| Max Size | 550mm |
| Thickness | 25~45mm |
| FPCB Min Size | 50mm |
| FPCB Max Size | 260mm |
| FPCB Thickness | 0.5~5mm |
| FPCB Warpage | Max. FPCB diagonal 1％ |
| Transport Height | 900±40mm |
| Transport Direction | Left-Right |
| Transport Speed | Max 1000mm/S Programmable (Adjustable) |
| Board Location | Support System | Platform jacking tension |
| Clamping System | Edge clamp fixed |
| Print head | Two independent motorized print heads |
| Squeegee Speed | 6~300mm/sec |
| Squeegee Pressure | 0~10Kg/cm2 |
| Squeegee Angle | 55°(Standard) |
| Squeegee Type | Stainless steel(Standard), plastic |
| Stencil Separation Speed | 0.1~20mm/sec Programmable |
| Cleaning System | Manual cleaning |
| Table Adjustment ranges | X:±5mm;Y:±5mm;θ:±2° |
| Machine |
| Repeat Position Accuracy | ±0.01mm |
| Printing Accuracy | ±0.025mm |
| Cycle Time | ≤9s (Exclude Printing & Cleaning) |
| Air Required | 4.5~6Kg/cm2 |
| Power Input | AC:220±10%,50/60HZ 1Φ 1.5KW |
| Control Method | PC Control |
| Machine Dimensions | 1754(L)X1249(W)X1600(H)mm |
| Machine Weight | Approx:600Kg |
| FPCB transport over plate height | 20mm |
Service
- Professional solutions: Provide professional SMT Full line solutions
- Free Warranty: One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge
- Free Installation: On-site free installation to ensure smooth production.
- Free Technical Training: Professional training of operating and maintenance.
- Free Technical Support: 7 * 24 technical online support.
- Free Software Upgrade: Offer free software upgrade whole lifetime
Packages
Step 1: Packing in film package to prevent dust and water to the machine
Step 2: Packing in foam cotton to protect the outside of the machine
Step 3: Packing in vacuum package to keep dry of the machine during transportation
Step 4: Transportation by truck to specified port
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
FAQ
Q. Can you accept CIF as the quoted price?
A. We only accept EXW as the quoted price for it is convenient and lower cost for both sides.
Q. Can I go and see if you have sold the equipment to India?
A. Yes, we have sold our machine in India, but for the fact we can't decide it for my customer, but I will try to contact my customer. Hope you can understand, because no one wants their competitors to visit their manufacturing site.
Q. How many products can your machine make per day?
A. The capacity of our machine is according to the real products, and the number of components on your PCB board that is important factor to figure out the actual speed of our machine with your products.
Q.What kind of machine you have?
A. We are the high speed SMT pick and place machine manufacturer, and also we build our brand to more efficient and convenient machine for our customers. We have multifunctional type, honor series, value series with high precision and high productivity.
