2 Zones 7Kw 8 Zones Lead Free Hot Air Reflow Oven

Name: 2 Zones 7Kw 8 Zones Lead Free Hot Air Reflow Oven
Brand: ETON
Price: 10000 USD

Cheap 2 Zones 7Kw 8 Zones Lead Free Hot Air Reflow Oven for sale

Brand Name : ETON

Model Number : ET-R8

Certification : CI,CCC,SIRA

Place of Origin : China

MOQ : 1 Unit

Price : 10000 usd

Payment Terms : T/T, L/C

Supply Ability : 50 Units per month

Delivery Time : 30 days

Packaging Details : vacuum wooden package

Name : Reflow Oven

Application : SMT Production Line

Power supply : 220V

Condition : 100% Original

Apply to : PCB,Hard light board or soft lamp strip,etc

Contact Now

SMT Machine High Stability Lead Free Hot Air Reflow Oven 8 zones

8 zones lead-free reflow oven ET-R8 with guide rail

Specification:

Model	R8 with guide rail
Dimensions	480012001450mm
Weight	1400kg
Number district heating	16
Heating zone length	3000mm
Number cooling zones	2
Exhaust volume requirements	25cubic/minute
Control Systems	computer control
Power Requirements	3Ø380v
Starting power	45Kw
Normal power consumption	7Kw
Heating time	25minutes
Temperature control range	Room temperature-350℃
Temperature control	Temperature range of the independent PID temperature control
Temperature control accuracy	±1℃
PCB distribution deviation	±2℃
PCB maximum width	350mm
Parts height	25mm
Transport direction	Left to right(right to left option)
Conveyor belt height	900±20mm
Transport speed	0-1800mm/min

Feature:

Windows-XP operation interface, designed two kinds of control mode, computer control and emergency manual control, have the functions of security.
Adopting heating mode of the world top German technology, high heat transfer rate. The same temperature setting can reach more than 15% higher than the similar models of production capacity. The same capacity can be realized is lower than the similar machines of 15-20℃ further reduce the hot components on the PCB board and micro-damage.
Each temperature zone using forced circulation, independent PID control, upper and lower independent heating, the temperature of the furnace chamber accurate, uniform, large heat capacity.
Due to the unique way to transport wind, surrounded by the return air patented design that eliminates the effects of the rail on PCB board to undesirable temperature, on PCB board of heating, it is more evenly and quickly than similar models.
Unique furnaces are the wind structure within different areas of the furnace can be different wind speed difference arising due to structure adjustment, heat uniform.
Adopting imported high temperature motors, speed by Inverter control, long-term use, quality and stability；
Built-in cooled, two cooling centers, excellent cooling effect；
Cooling gases forced discharged, air-conditioned environment, environmental protection and power saving；
Since temperature curve for testing features(3-channel temperature measurement system)；
Configuration of network rail transfer system；
Cover the heating zones can be automatically opened, easy to maintain, equipped with open end safety device.

Material Table:

Machine Part	Material
Transmission motor	Panasonic
High temperature motor	Taiwan SAYU
Control system PLC	Siemens
UPS uninterruptible power supply	SAGTAR
Relay	OMRON
Contactor	CHNT
Air switch	CHNT
Frequency converter	INVT
SSR contactless switch	American
Phase sequence protector	CHNT
Heating wire	Imported nickel wire
Three-color light	China
Rotary switch	CHNT
Emergency switch	CHNT
Computer host	Great wall
Mesh belt	Stainless steel

Details

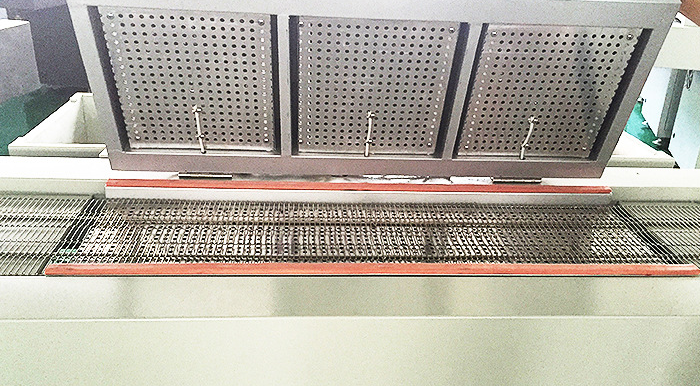

Titanium belt

2 Zones 7Kw 8 Zones Lead Free Hot Air Reflow Oven

New type heating furnace with oxidation protection

2 Zones 7Kw 8 Zones Lead Free Hot Air Reflow Oven

Furnace bile, adjustable, spray uniform and fine for cleaning

2 Zones 7Kw 8 Zones Lead Free Hot Air Reflow Oven

Core,Precision machinery, simple operation

2 Zones 7Kw 8 Zones Lead Free Hot Air Reflow Oven
